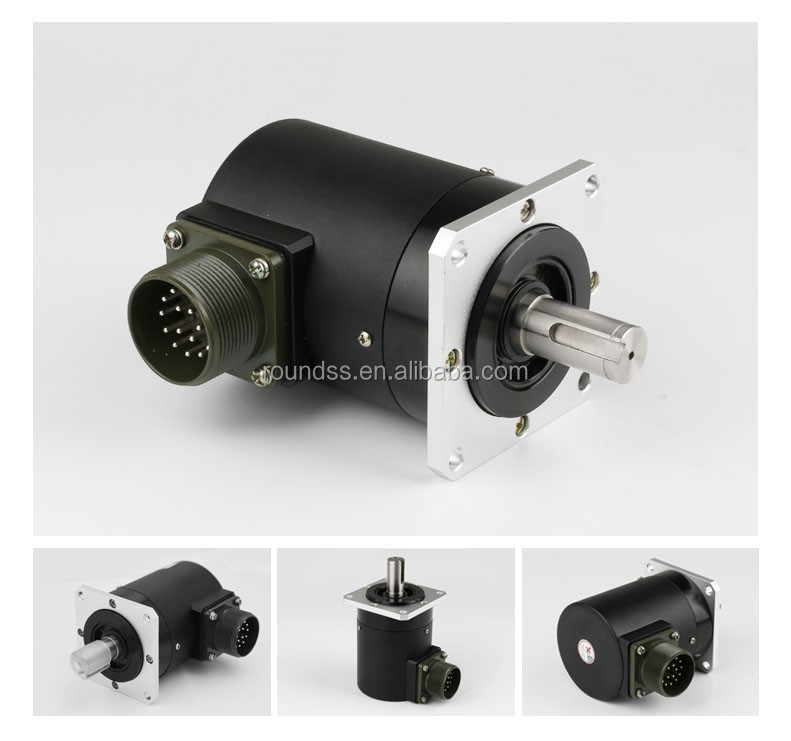

Rotary 2048 Line Encoder Price Sensor Manufacturer Motor Encoder with glass disk

Quick Details

Place of Origin: Jilin, China (Mainland)

Brand Name: Roundss

Model Number: R66S-15(LF/LFC) Rotary Encoder

Usage: Position Sensor

Theory: Optical Sensor

Output: Digital Sensor

External Diameter: 66mm Rotary Encoder

Shaft Diameter: 15mm

Max Speed: 6000r/min

Connection: Side Entry Cable/Rear Entry Cable

Protection Class: IP64

Supply Voltage: DC5V-26V/10V-30V

Output Circuit: Voltage/Push Pull/Open Collector/Line Driver

Output Pulse No.: 10-5400

Output Phase: A,B,Z/A,-A,B,-B,Z,-Z

Type: Rotary Encoder

Packaging & Delivery

Packaging Details:	Rotary Encoder Packaging: Carton

Incremental Encoder 15mm Shaft Same with Tamagawa Encoder

1.Solid shaft optical encoder RTC66S is mainly used in CNC Machine.

2.Compact structure, high radial and axial load Industrial Optical Encoder .

3.Several formats for transmission of encoder data .

4.Stainless steel shaft ensures high stability and protection ability.

5.Suitable in harsh environment optical encoder.

6.Low price and high quality Industrial Optical Encoder .

7.Standard flange, clamp flange and synchronous flange

Tamagawa Encoder Substitute 15mm Sealing Shaft Incremental Encoder

SPECIFICATION	MECHANICAL SPECIFICATIONS
	External Diameter	66mm
	Shaft Diameter	15mm
	Slew Speed	6000r/min
	Shaft Load	≤50N
	Operating Temperature	-20 °C(-40 °C)- +85°C
	Protection Class	IP64
	Termination	Side Cable/ Rear Cable/ Side Plug/ Rear Plug
	ELECTRICAL SPECIFICATIONS
	Supply Voltage	DC5V/5V-26V
	Output Model	Voltage/Push-pull/Open collector/Line driver
	Output Pulse No	10-5400
	Refresh Rate	0-100kHz
	Index Length	1T,1/2T,1/4T
	Current Requirement	≤60mA
	Output Phase	A,B,Z/A,-A,B,-B,Z,-Z

Mechanical Dimensions Tamagawa Encoder Substitute 15mm Sealing Shaft Incremental Encoder

Pre-sales Service

1.The incremental encoder can be customized to meet your need.

2.The questions about the encoder will be answered within 24 hours.

3.We have the best after-sale service.
