Manual Pulse Generator and Handwheel Unit


Hand pulse generator is an optical rotary encoder developed for manual pulse input for CNC machine tools, which is also known as electronic hand wheel, MPG handwheel, MPG, hand holding box and so on. Widely used in CNC machine tools for setting the mechanical work origin and manually stepping trimming. The band switch on it is used to select the axis and magnification. Pulses from the pulse generator is to facilitate the acquisition system.
According to the supply voltage, resolution and signal output, it results in a CNC control system applicable to all types of hand-held unit.
With impact resistant shell made of high strength materials, MPG has the function of anti-interference, abrasion resistance and oil-proof. It is suitable for CNC machine tools and automation systems, compatible with a variety of brands of CNC system. For example, SIEMENS, MITSUBISHI, FANUC, FAGOR, NUM, HEIDENHAIN, LNC, SYNTEC, KND, GSK, SKY, etc.


  • Manual pulse generator

A manual pulse generator (MPG) is a device normally associated with computer numerically controlled machinery or other devices involved in positioning. It usually consists of a rotating knob that generates electrical pulses that are sent to an equipment controller. The controller will then move the piece of equipment a predetermined distance for each pulse.

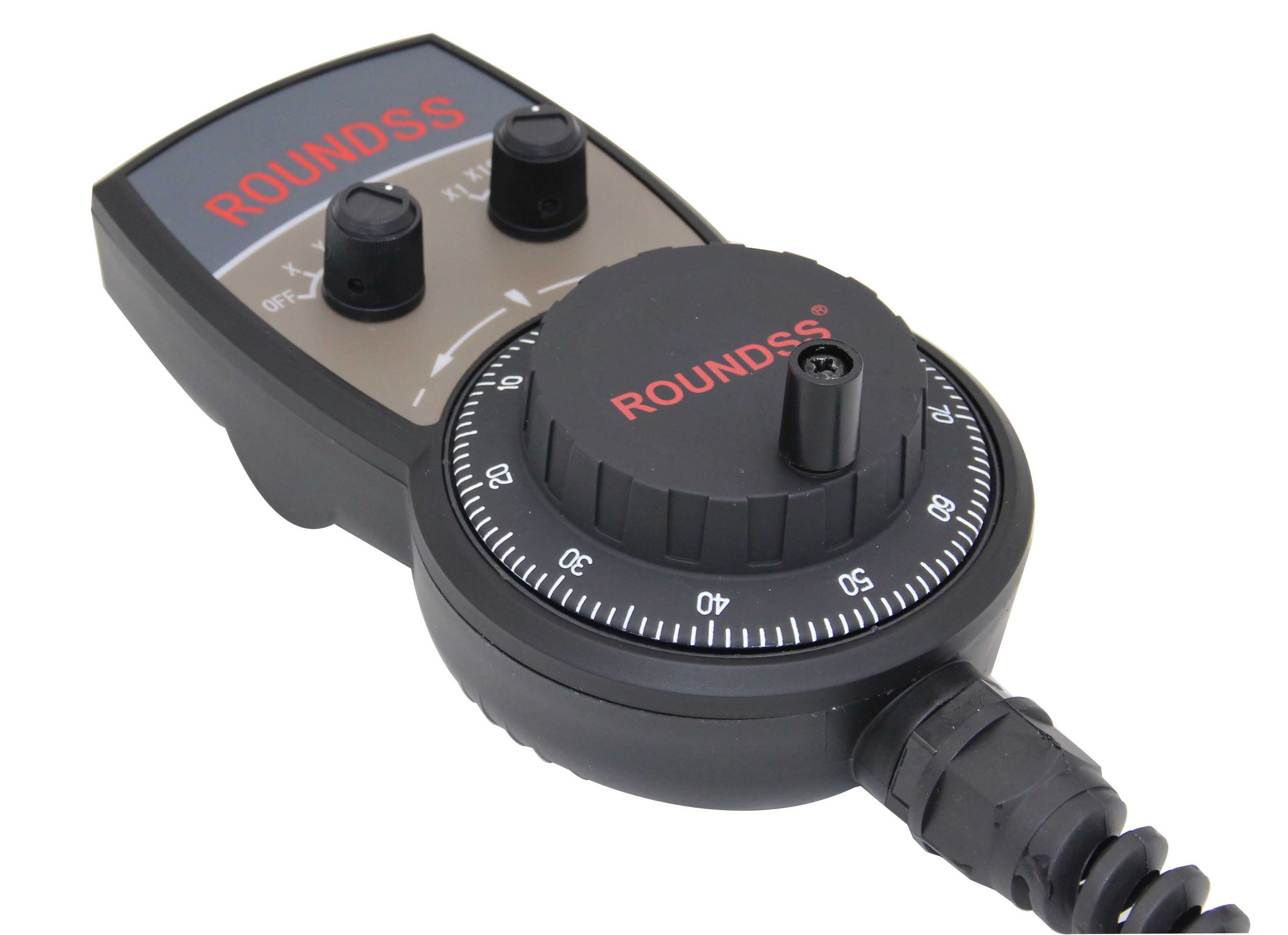

The CNC handheld controller MPG Pendant with x1, x10, x100 selectable. It is equipped with our popular machined MPG unit, 4 axis and scale selector, emergency stop and reset button.

[Manual Download]

Picture Model Body Dimension Axis NO Resolution Switch Emergency Stop Switch Enable Switch Operating Voltage Output Signal Resolution Housing Material pdf Download
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSA 164*80*60 X、Y、Z、4 ×1,×10,×100 optional optional DC5V E,L 25/100ppr Plastic
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSB 190*85*66 X、Y、Z、4、5、6 ×1,×10,×100 optional optional DC5V E,L 25/100ppr Plastic
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSC 127*74*58 X、Y、Z、4 ×1,×10,×100 N/A N/A DC5V E,L 25/100ppr Plastic
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSD 154*70*54 X、Y、Z、4 ×1,×10,×100 N/A N/A DC5V E,L 25/100ppr Plastic
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSE 197*85*78 X、Y、Z、4 ×1,×10,×100 N/A N/A DC5V E,L 25/100ppr Plastic
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSF 154*70*65 X、Y、Z、4、5、6 ×1,×10,×100 optional N/A DC5V E,L 25/100ppr Plastic
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSG 167*90*70 X、Y、Z、4、5、6 ×1,×10,×100 optional optional DC5V E,L 25/100ppr Plastic
Manual Pulse Generator and Handwheel Unit_Manual pulse generator RSH 167*90*70 4/5/6 ×1,×10,×100 optional optional DC5V E,L 25/100ppr Plastic

Output Signal Definition:
C:open collector;E:voltage;F:pushpull;L:line driver; A:wide voltage line driver
