1.Standard single turn absolute rotary encoder with good resistance to mechanical damage capability is usually used in industry environment,can withstand high axial and radial load.
2. A variety of flange and output model is optional, adjustable reset function, timely correcting operation.
l Absolute Encoder External Diameter:42mm.
l Absolute Encoder Resolution:10-18 bits.
l Multiple Output interfaces absolute encoder.
l IP64.Be able to operate in harsh environment.

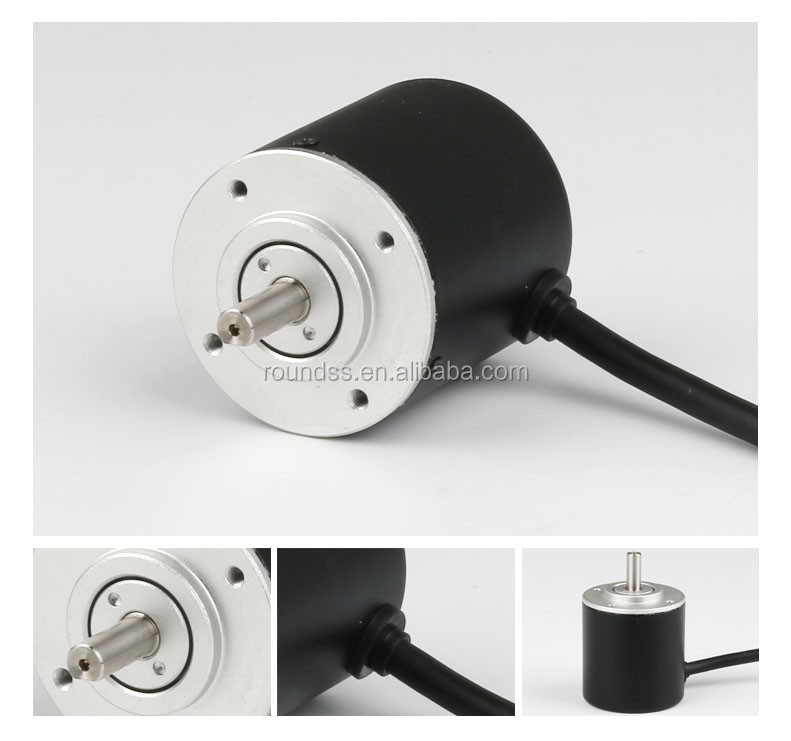

Rotary Absolute Encoder Optical RDE42BS10 Series
| SPECIFICATION | External Diameter | 42mm | ||
| Shaft Diameter | 10mm | |||
| Max Speed | 2000r/min | |||
| Shaft Load | ≤20N | |||
| Operating Temperature | -20 °C-+65°C/-40°C- +65°C | |||
| Protection Class | IP64 | |||
| Termination | Side Entry Cable/ Rear Entry Cable | |||
| Shock | 20g | |||
| Vibration Resistance | 2.5g | |||
| Radial cable | 1m standard | |||
| Supply Voltage | DC5V/DC9-30V | |||
| Output Code | Binary Code/Gray Code | |||
| Interface | RS485/RS422/RS232/SSI/CAN/Parallel | |||
| Refresh Rate | 50-1000kHz | |||
| Baud Rate | 4800b/s-115200b/s | |||
| Current Requirement | ≤180mA | |||
| Resolution in Bits | 10-18 | |||
| Protocol | Timing TXD/Bus TXD | |||
| Measuring Range | 0°-360° | |||
Mechanical Drawings Hollow Shaft Rotary Absolute Encoder Optical Encoder
Pre-sales Service
1.The rotary absolute encoder can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
