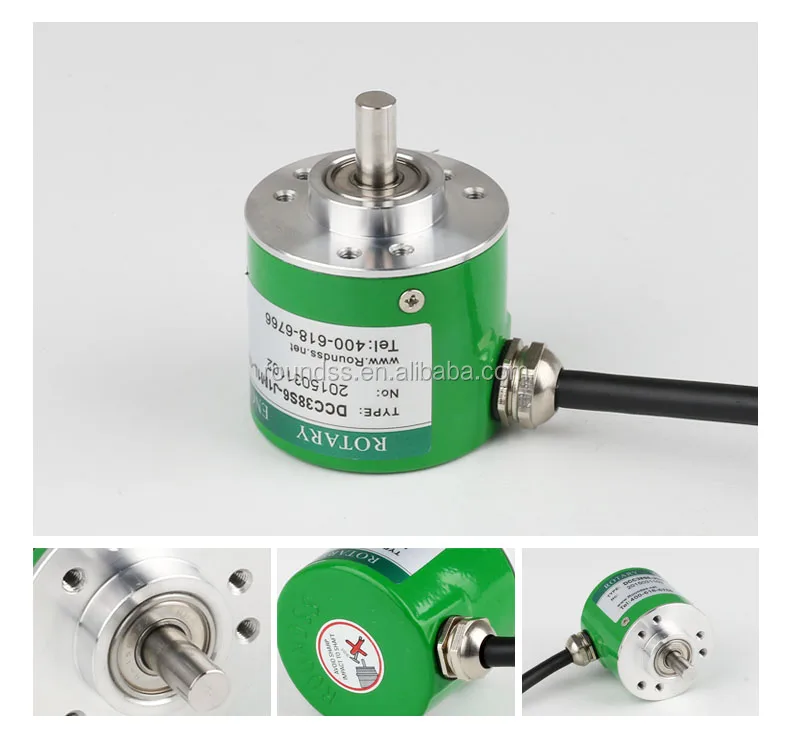

Roundss DC12v incremental displacement encoder for packing machines！

Changchun Rongde Optics Co.,Ltd. Release time：2016/6/17 Browse：919

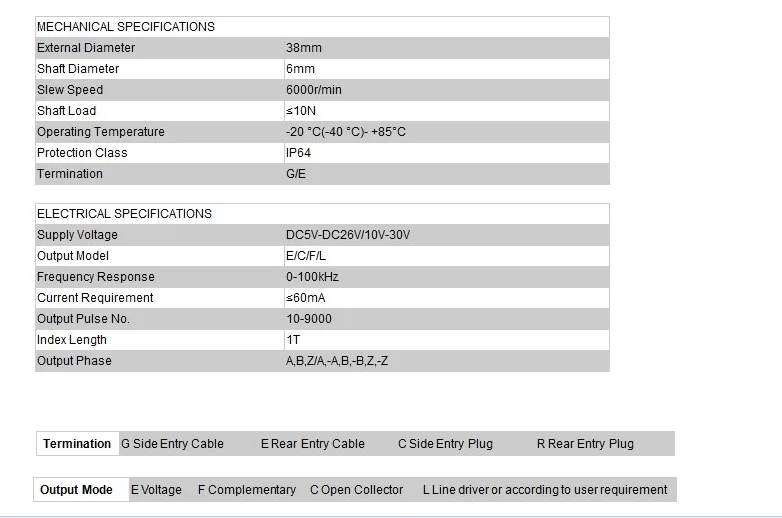

Quick Details

Place of Origin: Jilin, China (Mainland)
Brand Name: Roundss
Model Number: DCC38S6
Usage: Position Sensor
Theory: Optical Sensor
Output: Digital Sensor
External Diameter: 38mm
Shaft Diameter: 6mm
Protection Class: IP64
Frequency Response: 0-100kHz
Max Speed: 6000r/min
Shaft Load: ≤10N
Output Phase: A,B,Z/A,-A,B,-B,Z,-Z
Output Pulse No.: 8000-65536
Current Requirement: ≤60mA
Supply Voltage: DC5V/8V-26V

Packaging & Delivery

Packaging Details:	optical encoder packaging: Carton

Roundss low cost incremental rotary encoder sensor

Optical Encoder Price 6mm Solid Shaft Encoder
