Packaging & Delivery
| Packaging Details: | Optical Encoder Packing: Carton |
|---|---|
| Delivery Detail: | Delivery within 5 work days on completion of the payment |
18 MONTHS: Free Replacement of Defective Products within 18 Months
Product Description

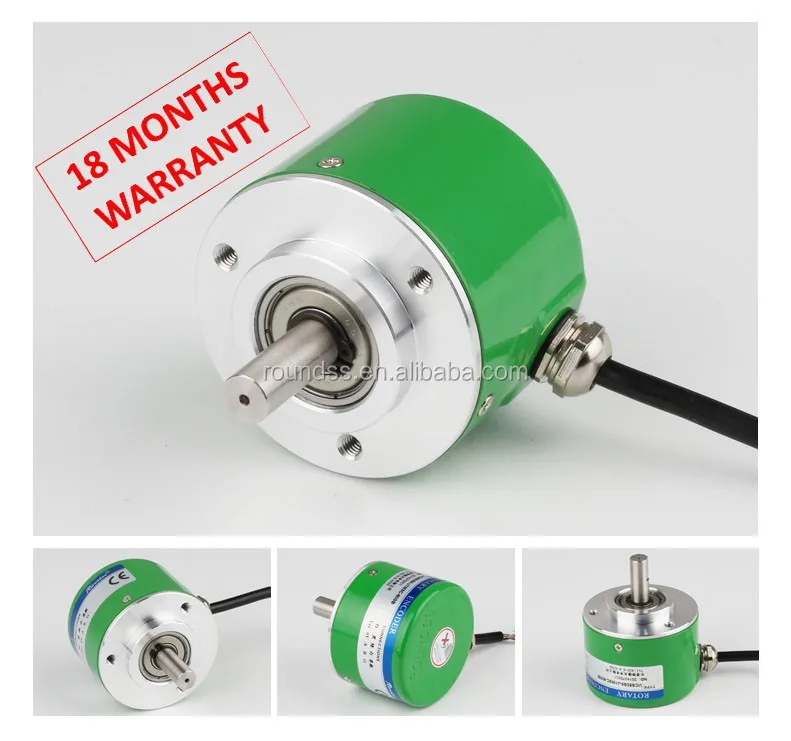

ROTRY INCREMENTAL ENCODER 50MM HOUSING
Incremental shaft encoders also known as Incremental Rotary Shaft Encoders are ideal for monitoring sensing a rotating shaft, or even linear position sensing when used in conjunction with ball screws etc, rollers. When integrated into a control system, they provide speed, position, acceleration & direction feedback data to the system. Incremental encoders produce a series of pulses directly proportional to movement of its shaft.
Features:
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.
| MECHANICAL SPECIFICATIONS | |
| External Diameter | 50mm |
| Shaft Diameter/Shaft Hollow Diameter | 6/8/10mm |
| Slew Speed | 6000r/min |
| Shaft Load | ≤30N |
| Operating Temperature | -20 °C(-40 °C)- +85°C |
| Protection Class | IP65 |
| Termination | radial cable / axial cable |
| ELECTRICAL SPECIFICATIONS | |
| Supply Voltage | DC5V-DC26V/10V-30V |
| Output Model | Voltage output, Open collector, Push-pull, Line driver |
| Frequency Response | 0-100kHz |
| Current Requirement | 0-60mA |
| Output Pulse No. | 10-5000 |
| Index Length | 1T |
| Output Phase | A,B,Z/A,-A,B,-B,Z,-Z |

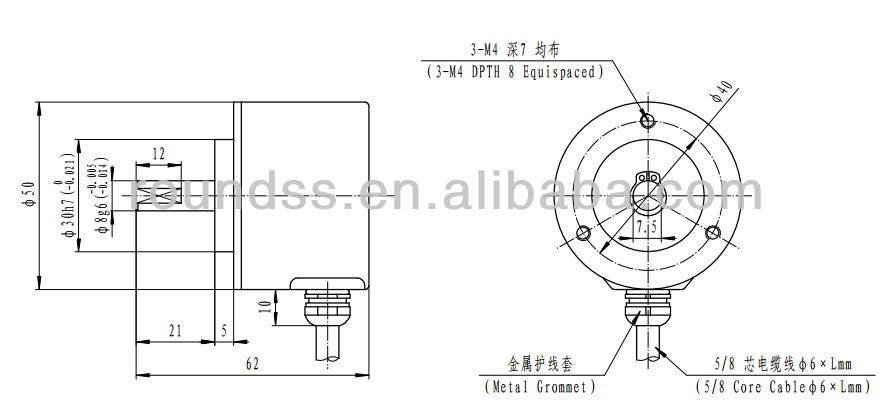

Mechanical Dimensions Low Cost Speed Encoder Rotary Sensor 38mm Housing 6mm Solid Shaft
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
