Packaging & Delivery
| Packaging Details: | Linear Glass Encoder packing:Carton |
|---|---|
| Delivery Detail: | Shipped in 7 days after payment |
18 MONTHS: Free Replacement of Defective Products within 18 Months
Small Size 0-500mm Draw Wire Linear Encoder for Automation Medication Packing Machine
Draw-wire displacement encoders measure linear movements using a highly flexible steel cable.
The cable drum is attached to a sensor element which provides a proportional output signal.
Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability.
Key Features of Small Size 0-500mm Draw Wire Linear Encoder for Automation Medication Packing Machine
- 0 to 400mm measuring range linear encoder.
- Rugged, compact design linear encoder.
- Profiled enclosure linear encoder.
- Analog and digital outputs linear encoder.
- Protected to IP65 linear encoder.
- CE Approved linear encoder.
Technical Parameter of Small Size 0-500mm Draw Wire Linear Encoder for Automation Medication Packing Machine
| Senor Type | Incremental Encoder |
| Wire rope | 0.6mm high flexible imported plastic coated wire rope |
| Output Signal Voltage | Open Collector Push-pull |
| Line Drive Voltage Output | |
| Measuring Range | 0-400mm |
| Switching Circuit | N/A |
| Zero-point and Full-scales | N/A |
| Linear Accuracy | 0.05%FS |
| Repeatability Accuracy | 0.0001 |
| Resolution(mm) | 0.06/ 0.04/ 0.03/ 0.015/ 0.01/ 0.008 |
| Max.Reciprocating Speed | 1000mm/s |
| Reciprocating Frequence | 50Hz(See Reciprocating Amplitude) |
| Frequency Response | 100kHz-300kHz |
| Power | Based on output |
| Operating Voltage | Based on output |
| Outlet Tension | 4N |
| Wight(kg) | 0.45 |
| Operating Temperature | -30°C- 90°C |
| Life | >10million times |
| Vibration Resistance | 10Hz-1500Hz |
| Cable Length | Optional |
| Housing Material | Imported aluminium alloy, oxidation surface treatig,wear and corrosion prevention |
| Protection Class | IP54(Standard) IP65 |

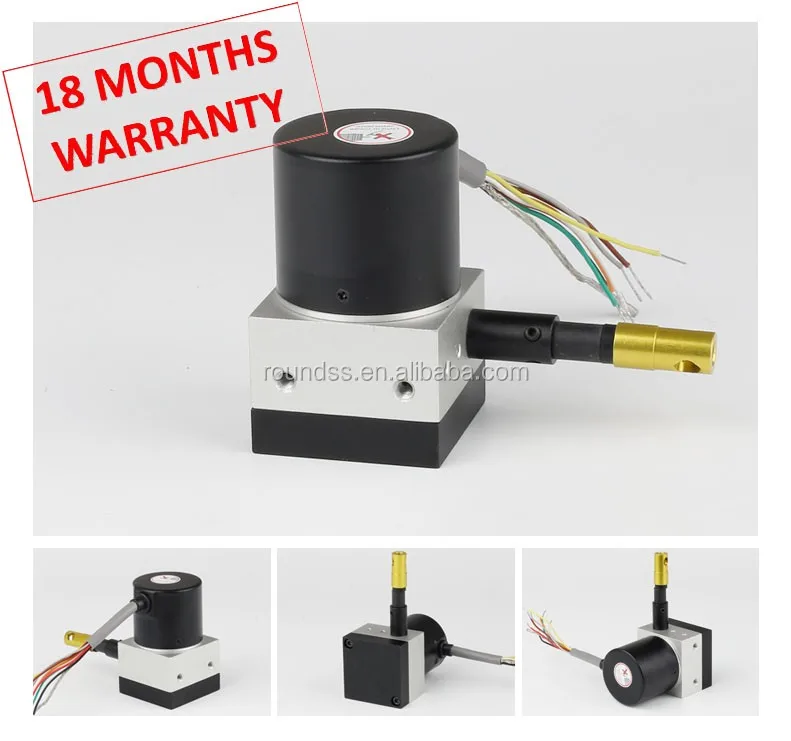

Product Images of Small Size 0-500mm Draw Wire Linear Encoder for Automation Medication Packing Machine
Pre-sales Service
1.The optical encoder sensor can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
 |
 |
 |
 |
 |
 |
 |
|
Our Services
FAQ
MOQ 1 Set
Term of Payment T/T Western Union PayPal
Supply Capability 5000 sets / Week
Packing Carton
Delivery Time 5-7 working days after payment reached
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No.816-2, Pudong Road, Changchun, China
We can pick you up in the airport.
Hotel booking service is available
