Rotary Encoder and linear scale for CNC bending machine！
Changchun Rongde Optics Co.,Ltd. Release time：2015-07-14 Browse：1266Rotary Encoder and linear scale for CNC bending machine
CNC bending machine features:
Bending machine has the closed loop control system. Two linear scales and a optical encoder are used to get a real-time detection feedback. Also the stepper motor driving screw is included for the closed loop control. Two Linear scales; one is used for the back gauge, one is used for getting the real-time position detection of slider; optical encoder offer the position feedback of stopper cylinder to the CNC system.
1. The angle programmed directly with angle compensation.
2. Real-time detection by linear scale for feedbacking the correction, closed-loop control, back gauge and sliders dead backgauge positioning accuracy of ± 0.02mm.
3. The mold with fast clamping device, the lower mold using wedge deformation compensation mechanism.
4. With a multi-step programming function, multi-automatic operation, the part-time to complete multi-step process, improve production efficiency.
5. According to user requirements, stable performance, compact structure of imported hydraulic system, back gauge fixed with ball screw and belt drive are optional.
Roundss Encoder (Changchun Rongde Optics Co.,Ltd) could provide such linear scales and optical encoders for bending machines.
A linear encoder is a sensor, transducer or readhead paired with a scale that encodes position. The sensor reads the scale in order to convert the encoded position into an analog or digital signal, which can then be decoded into position by a digital readout (DRO) or motion controller.

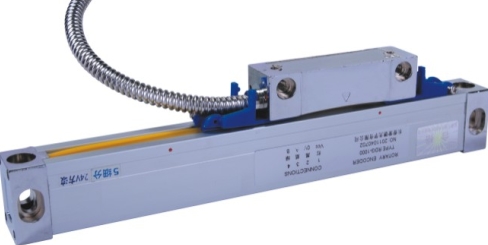

Roundss linear scale with the range from 200mm to 3000mm.The resolution 1um and 5um are on customer request.TTL and HTL signals are also optional.
Waiting for your inquiries.
