Packaging & Delivery
| Packaging Details: | Solid Shaft Optical Rotary Encoder Packing: Carton |
|---|---|
| Delivery Detail: | Delivery within 5 work days on completion of the payment |
Product Description

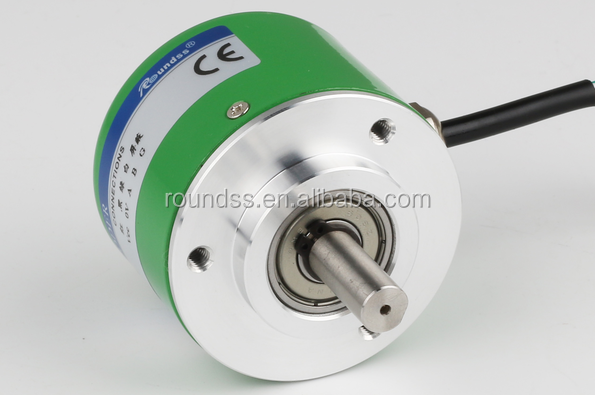

Rongde 50mm Solid Shaft Optical Rotary Encoder Changchun
1. Certification: CE & ISO9001 & SGS.
2.Feature: sturdy and durable, easy to install, optional various output mode, etc.
3.Manufacturer: quality control, better delivery control and better cost control.
| MECHANICAL SPECIFICATIONS | |
| External Diameter | 50mm |
| Shaft Diameter | 8/10mm |
| Slew Speed | 6000r/min |
| Shaft Load | ≤30N |
| Operating Temperature | -20 °C(-40 °C)- +85°C |
| Protection Class | IP65 |
| Termination | Side Entry Cable/Rear Entry Cable |
| ELECTRICAL SPECIFICATIONS | |
| Supply Voltage | DC5V/8V-26V/12V-30V/12V |
| Output Pulse No. | 10-6000 PPR |
| Indexing Length | 1T |
| Frequency Response | 0-100kHz |
| Output Model | Voltage/ Push-pull/ Open collector/ Line driver |
| Current Requirement | ≤60mA |
| Output Phase | A,B,Z,-A,-B,-Z |

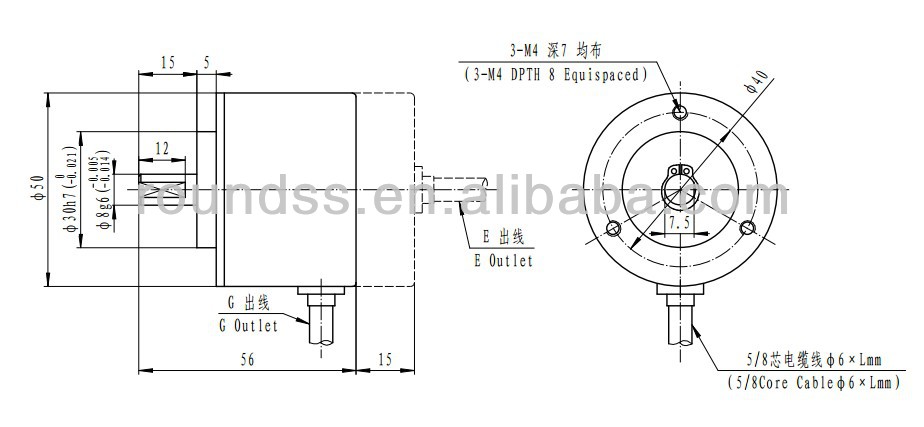

Mechanical Dimensions of Rongde 50mm Solid Shaft Optical Rotary Encoder Changchun
Pre-sales Service
1.The rotary absolute encoder can be customized to meet your need.
2.The questions about the encoder will be answered within 24 hours.
3.We have the best after-sale service.
