How should the outer and inner shield of the readhead cable be connected to single shield extension ！

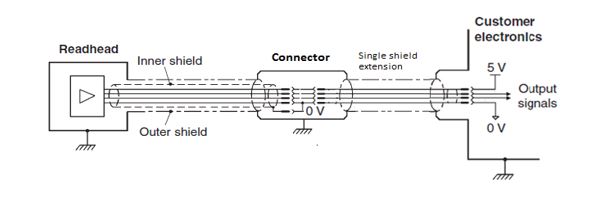

The inner shield of the readhead cable must be connected to the 0 V line within the intermediate connector and the outer shield of the readhead cable must be connected, via the (metallic/conductive) connector shell, to the shield on the extension cable, as shown in the diagram below. Note: The outer shield should form a continuous screen from readhead body around connector to customer electronics.
