Incremental Encoder


Incremental encoders work by providing a certain amount of pulses in the encoder's rotation to give distance and speed feedback for motor applications.
The incremental encoder provides specific pulses for the encoder rotation, and these pulses may be in one or two lines of pulses. These lines are typically designated as "A" and "B" channels, and the offset phasing of the channels, which is also known as the quadrature, helps determine rotation. The signals are created by a sensory array inside a printed circuit board, and the rest of the incremental encoder includes a spindle assembly and cover.
Incremental encoders are useful for light-duty, heavy-duty and industrial applications.


  • Solid Shaft Incremental Encoder

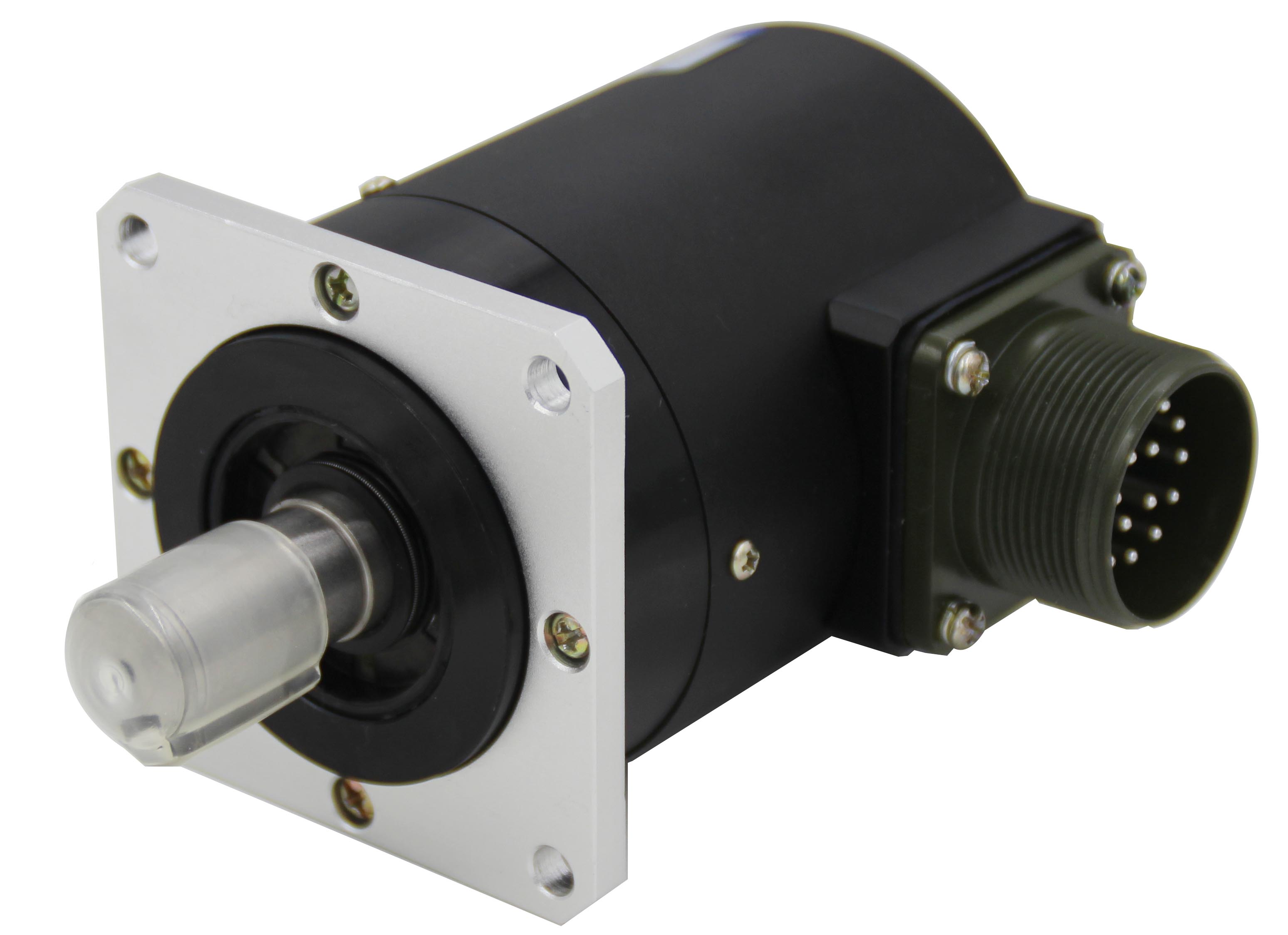

A solid shaft incremental encoder has a solid bar that attaches to the motor and is attached using a flexible coupling and an external flange.

[Manual Download]

Picture Model Application Outer Dia.
(mm)
Shaft Dia.
(mm)
Resolution
Operating Voltage Output Signal Max Mechanical Speed(r/min) Protection Class Operating Temperature PDF
Download

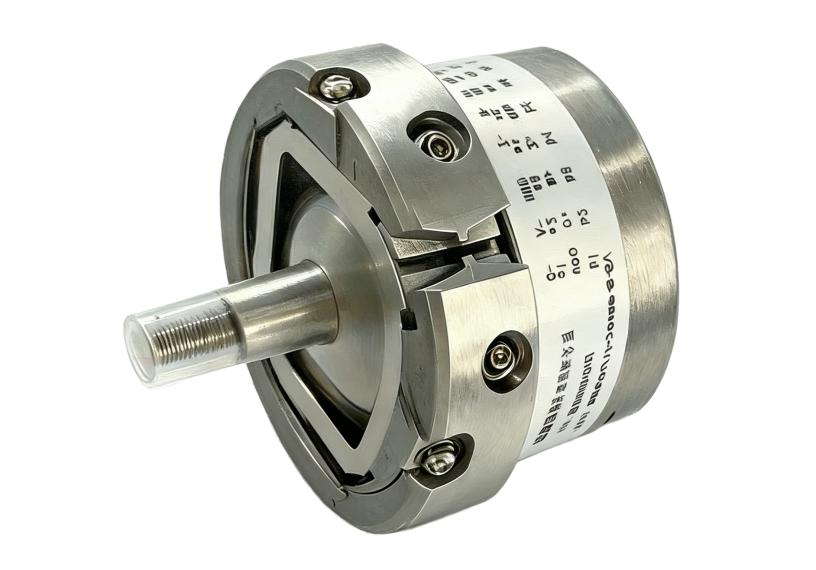

Incremental Encoder_Solid Shaft Incremental Encoder REN56U Elevator 56 9.25 2048 5V 1Vpp 8000 IP54 -40~+120℃
Incremental Encoder_Solid Shaft Incremental Encoder DTC70S Spindle Machine 70 8 200-5000ppr 5V/8-26V/12-30V/24V C,E,F,L,A 6000 IP65 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder RTC66S15 CNC Spindle 66 15 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP65 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder RTC62S15 CNC Spindle 62 15 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP65 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder DTC58S15 CNC Spindle 58 15 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP65 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder DTC58S10A CNC Spindle 58 10 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP65 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder RCC58.3S Automation 58 9 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP54 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder RCC58.2S CNC machine/Automation 58 6,8,10 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP54 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder DCC58.1S CNC machine/Automation 58 5、6、8、9、9.5、10 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP65 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder DCC50S light industrial machinery 50 8 100-6000ppr 5V/8-26V C,E,F,L,A 6000 IP65 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder RCC38S Automation/Textile Machinery 38 6 30-5000ppr 5V/8-26V C,E,F,L,A 6000 IP54 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder RCC30S Automation 30 4 36-1200ppr 5V/8-26V C,E 6000 IP54 -20~+85℃
Incremental Encoder_Solid Shaft Incremental Encoder RCC25S Automation 25 4 20-1200ppr 5V/8-26V C,E 6000 IP54 -20~+85℃

Output Signal Definition:
C:open collector;E:voltage;F:pushpull;L:line driver; A:wide voltage line driver
