Changchun Rongde Optics Co., Ltd. is a rotary encoder manufacturer. It is technology-based  R & D company mainly engaged in the development and production of industrial sensors,  rotary encoders for displacement measurement and angle measurement instruments.

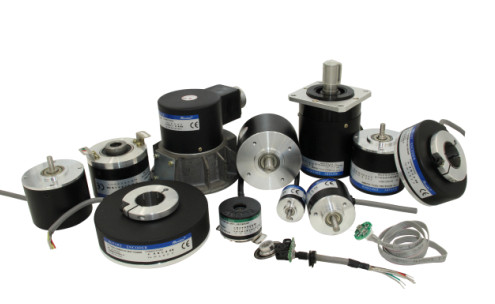

The rotary encoder can be classified by the following ways.

1. According to the different ways of code wheel engraved

(1) Incremental encoder: a pulse signal is output every angle when rotaring(it is also available fore positive cosine signal.the signal is doubled or more to get a higher frequency pulse). It usually output the A phase, B phase , Z phase output, A-phase, B-phase pulse output mutual 1/4 cycle of the delay, the delay can be the difference between positive and negative relationship, and by taking the A-phase, B-phase rising and falling edges can be 2 or 4-fold ; Z-phase pulse as a single lap, that one pulse per revolution.

(2) Absolute encoder: is the corresponding circle, the angle of each benchmark issue a unique angle corresponds to the binary value, through an external device can record lap record and measure multiple locations.

2. Divided by the output signal type: voltage output, open collector output, a complementary push-pull output and line driver output.

3. The encoder mechanical mounting form

(1) a shaft type: a shaft type can be divided into clamping flange, servo flange type and servo mount type.

(2) hollow type: hollow type can be divided into the end hollow type, through hollow type and big hollow type.

4. By encoder working theory, it can be divided into: optic encoder, magnetic encoder and contact brush encoder.

Changchun Rongde Optics Co., Ltd. is equipped with advanced encoder testing equipment. We treat the quality first, customers first as a business purpose.
