Roundss- slim encoder for the robotics industry ！

Roundss- slim encoder for the robotics industry

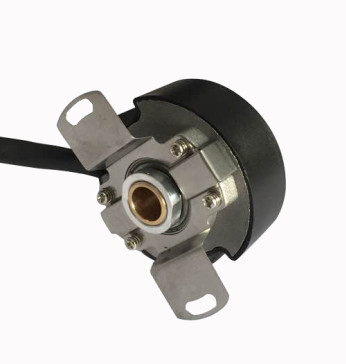

To meet the increasingly smaller and shorter servo drive design, the length and diameter of multi-turn absolute rotary encoder must be reduced. Robot manufacturers need more accurate and more efficient compact encoder than ever. Roundss DVA 48T multi-turn absolute rotary encoder is suitable for the servo motor position and speed control.

DVA 48T absolute multi-turn encoder resolution of 33 bits (single-turn: 17, multiturn: 16). With the modular design，no bearing and drive mechanism, It is one of the world's smallest absolute rotary encoders, 27 mm in length and a diameter of only 48 mm shell. Therefore, it is destined to be applied to the field of highly dynamic servo motors, automation technology and industrial robots. The accuracy of the  new rotary encoder reaches ± 120 angular seconds. Good control quality and large permissible axial mounting tolerances ± 0.3 mm, voltage range 5 V, and mechanical transmission mode compared to multi-turn, DVA48T extended to a range of more than 65,536 laps values, thereby it increases the customer's applications . Electronic memory loopy without additional mechanical components, but also improve the ability to shock and vibration, ensuring low noise operation.
